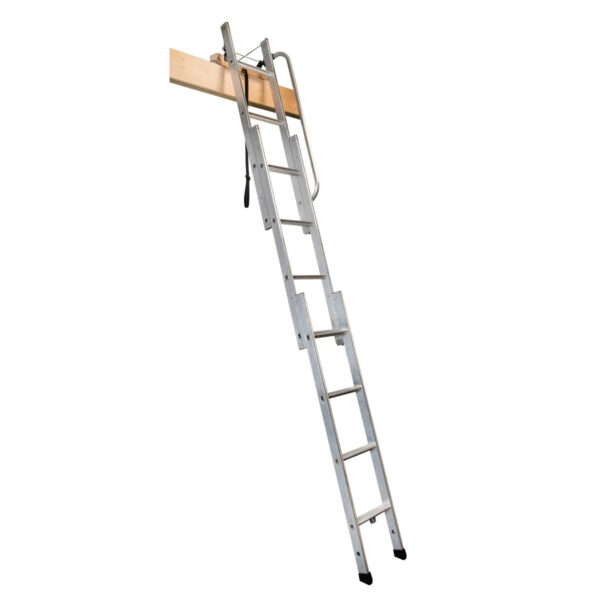

The Mini Vertical Carriage loft ladder (MCL) offers versatile, light weight and reliable access to many domestic vertical loft access settings or mezzanine floors. Note: The MCL loft ladder does not come supplied with a trapdoor / hatch.
  • Light duty ladder made from extruded aluminium alloy.
  • Specially designed carriage board (mdf) enables unit to slide clear of floor’s edge.
  • Suits floor to floor heights up to 2.92m.
  • Suits existing vertical loft hatch openings from 750mm (H) x 500mm (W)
  • Unit is supplied with one Handrail as standard.
  • Can also be used for access to a mezzanine floor application.
  • Suitable for domestic use.
  • Uses a dual radius arm operation allowing for a smooth and safe deployment of the ladder.
  • Supplied with plastic slides as standard, allowing the ladder to operate almost silently.
  • Safe working load of 150 kg.
  • Compliant with EN 14975 (European Ladder Standard).
  • Complete with operating pole and fittings.
ManufacturerLoft Centre
MaterialAluminium
Sections3
Minimum Floor Height2300mm
Maximum Floor Height2920mm
Minimum Opening Size750mm x 500mm
Ladder Width325mm
Tread Width275mm
Tread Depth50mm
Minimum Storage Length1350mm
Minimum Clearance Arc 800mm
Maximum Floor to Floor 2925mm
Max Load 150kg
HandrailYes
Hatch IncludedNo
